Zafi Ruwa

₦200,000.00
  • Description
  • Gallery

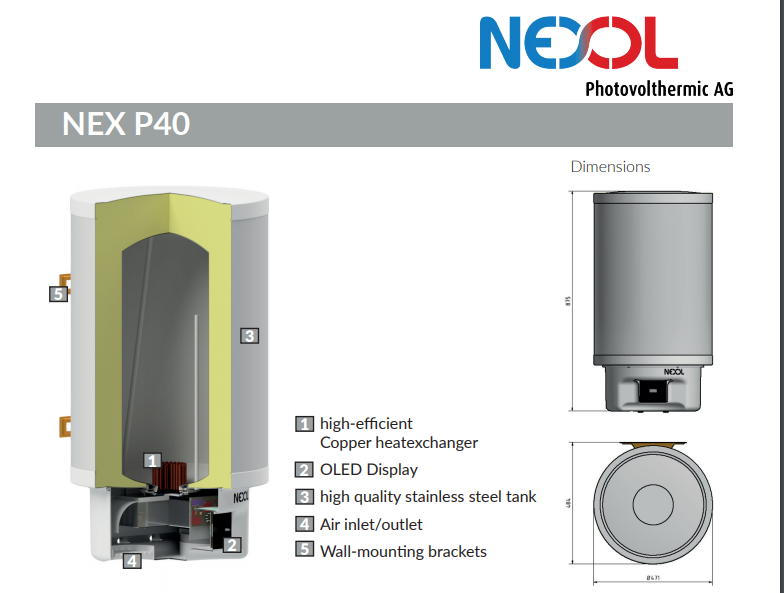

Content:

1. High-efficient Copper heat exchanger
2. OLED Display
3. High quality stainless steel tank

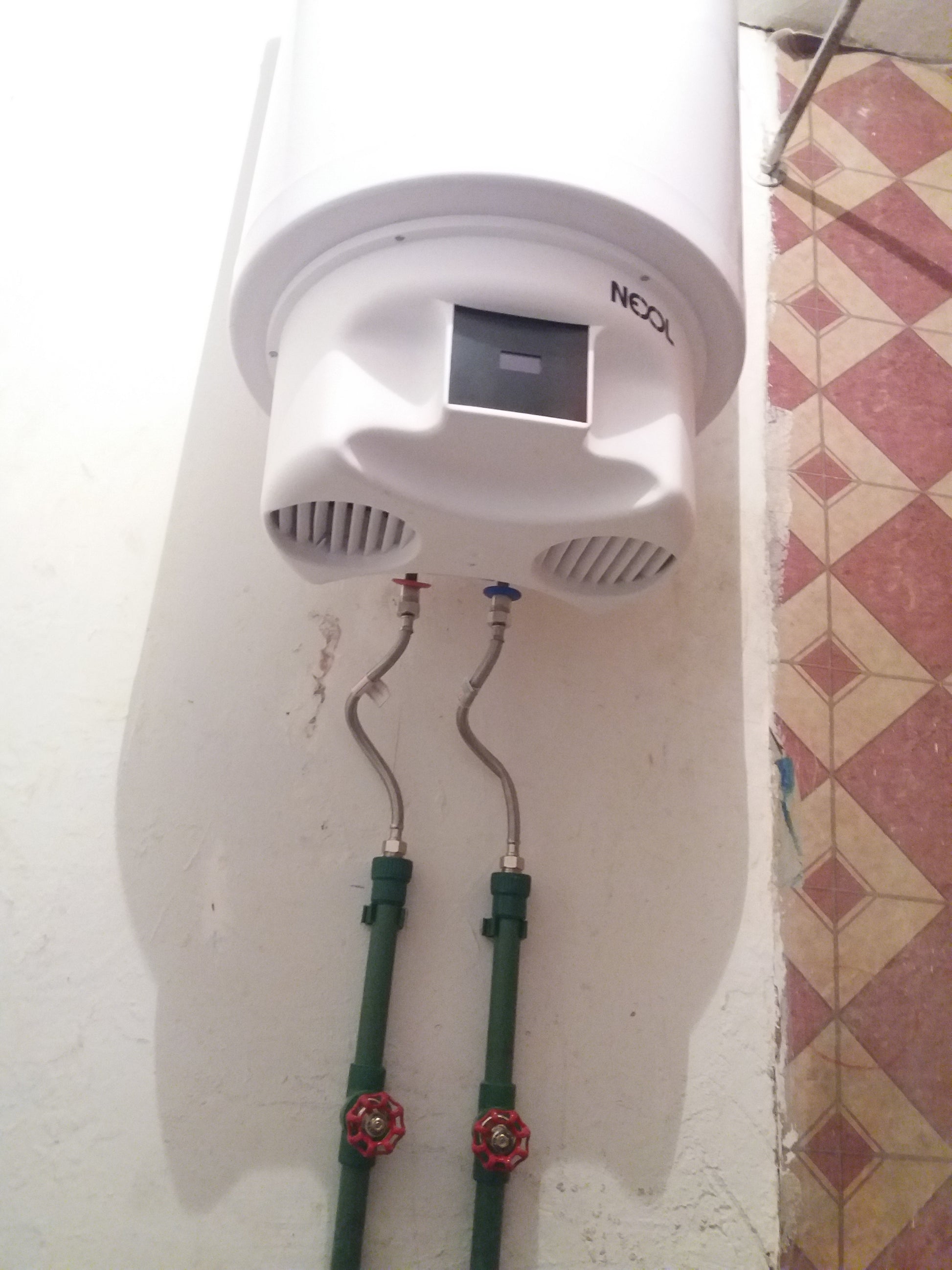

4. Air inlet/outlet
5. Wall-mounting brackets

 Quality:

-High efficiency copper heating element
-Pressure relief valve
-No need of corrosion protection, thanks to stainless steel

User Friendliness:

-Easy one-man installation
-Space-saving wall-mounted solution
-Easy direct connection to PV Panel
-Automatic mode switch, display showing mode and power consumption

Savings:

-Plus size Insulation of 85mm
-Up to 75% energy savings, thanks to PV-connection and heat pump

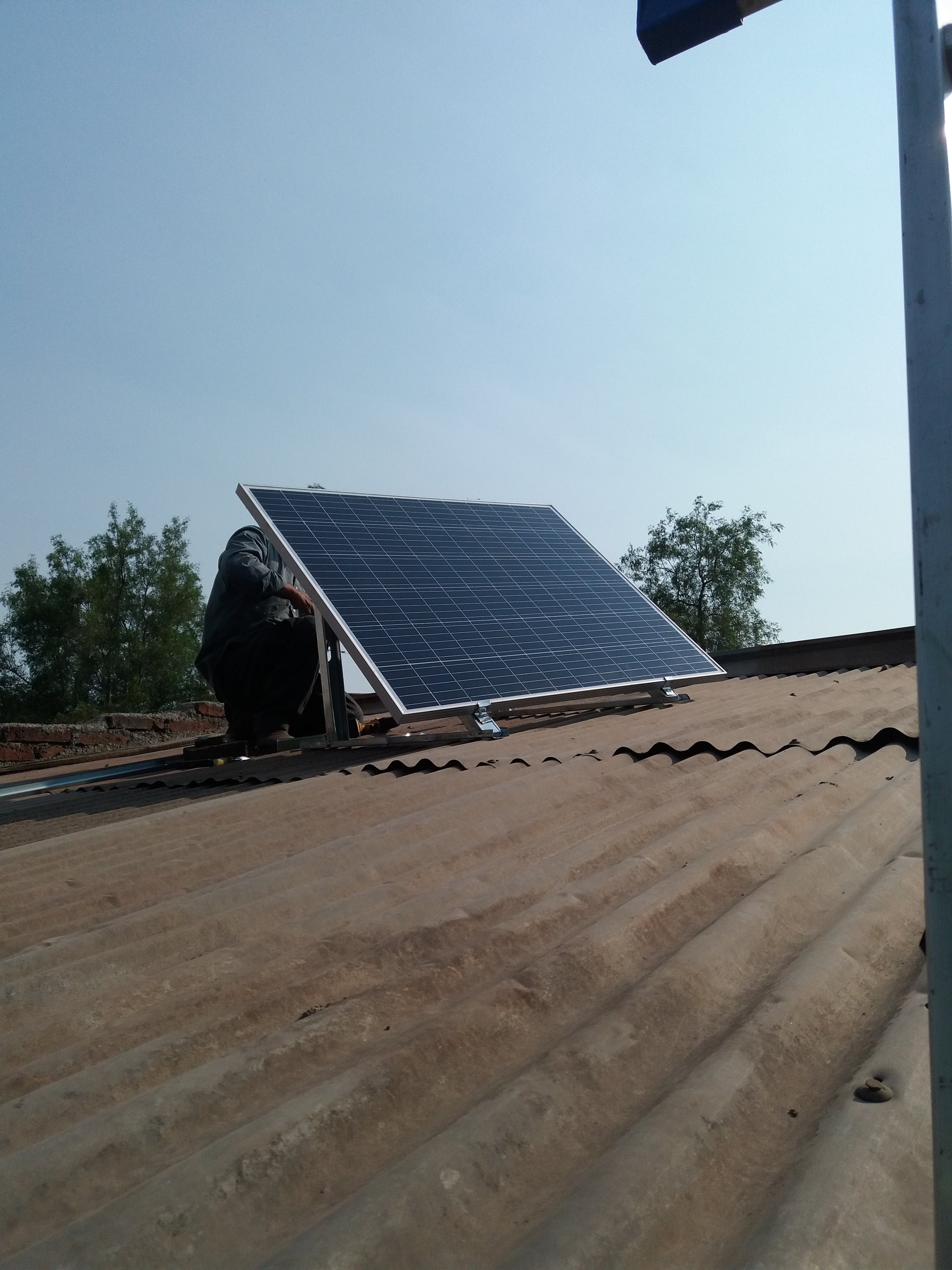

-Free solar energy from Photovoltaic connection
-Lightweight system compared to solar-thermal-systems



Technical Data:

-Water Capacity: 40 L
-Design: Wall-mounted
-Heating element: Copper
-Dimensions (h x w x d): 875 x 484 x 471
-Empty Weight: 24 kg
-Power Heatpump (W): 210
-Solar Module (Wp/V/A): 210-300/ 48/ 14
-Electrical Connection AC (V/Hz): 110-230 / 50-60
-Electrical Connection DC (V/W): 19-24 / 80
-MPP Tracking: Yes
-Acousting Noise (dB): 36
-Max pressure (MPa): 0,75
-COP (grid/PV): 1,8 / 2,0
-Operating Range (°C): 0-65
-Mean heating time (h): 10
