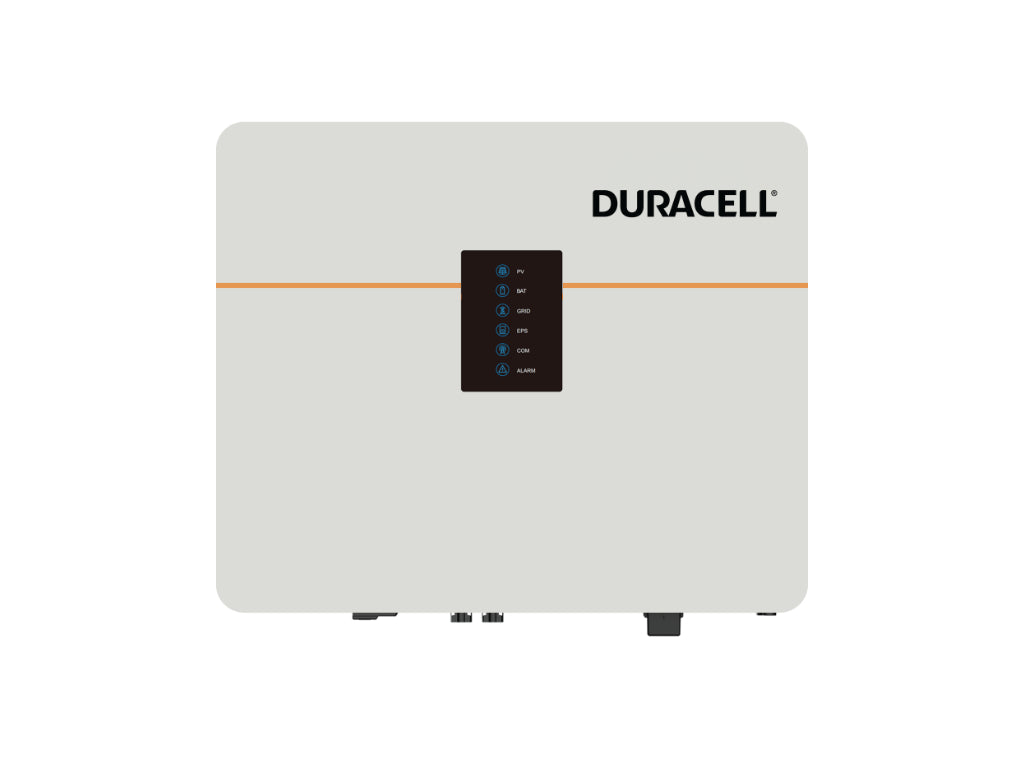

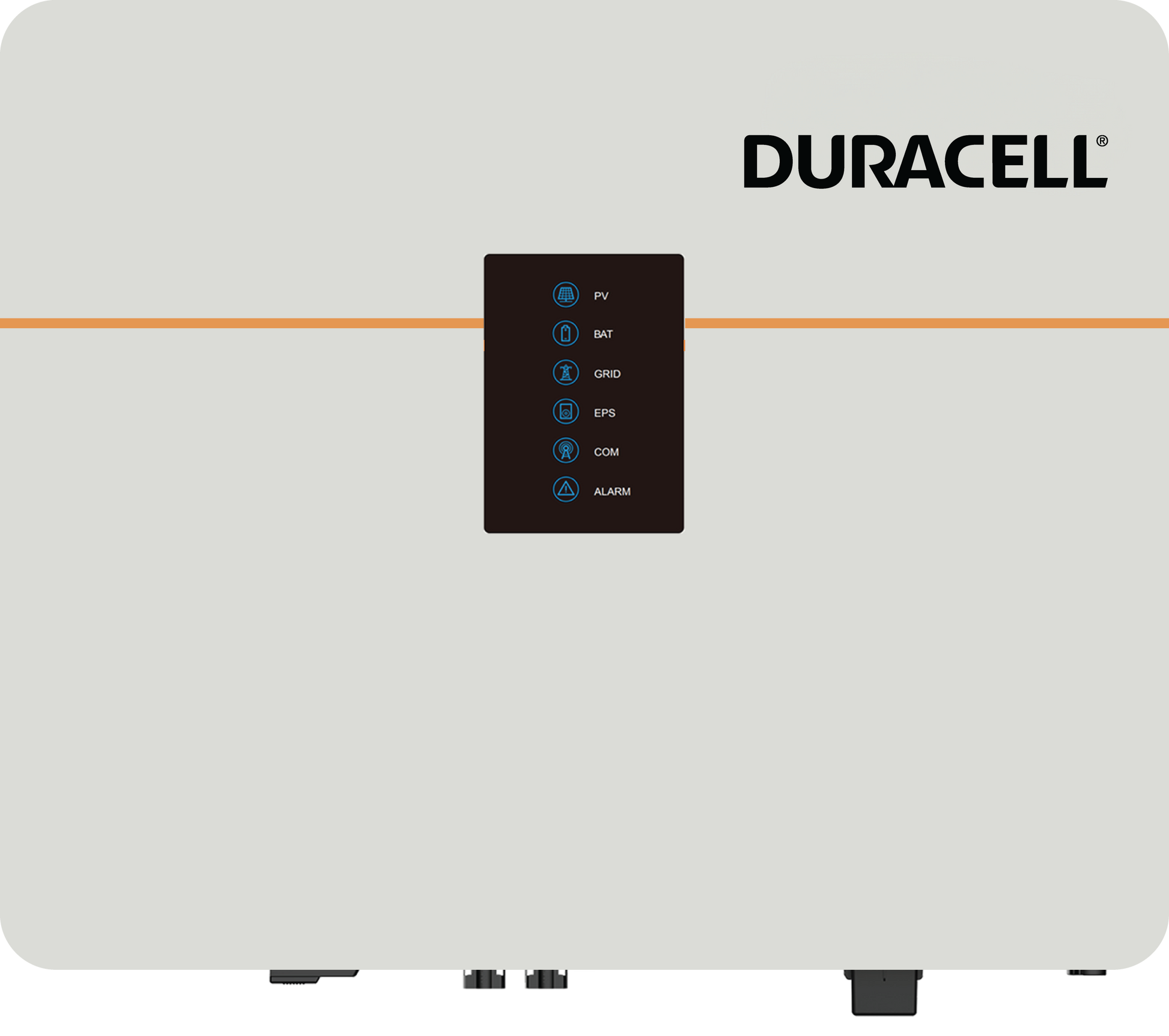

The Dura-i Inverter by Duracell Energy is a robust and highly efficient energy conversion solution tailored for both solar enthusiasts and professional setups. This state-of-the-art inverter comes in three powerful models: PD-DH1P-3.6K-G1, PD-DH1P-4.6K-G1, and PD-DH1P-6K-G1, designed to cater to varying energy requirements. It boasts a peak efficiency of 97.3% from PV to AC, ensuring that you get the most out of your photovoltaic systems.

Engineered to be versatile, the Dura-i supports up to 9kWp of PV power and operates efficiently with input voltages up to 550V. It features dual MPPT for optimized energy conversion and accommodates up to 6 inverters in parallel for expansive system setups. For battery integration, it is compatible with 48V lithium-ion batteries, offering flexible charge and discharge capabilities up to 6,000W, adapting seamlessly to a home’s energy demands.

Safety is paramount with the Dura-i Inverter, incorporating multiple layers of protection including anti-islanding, DC/AC overvoltage, and short circuit safeguards. Its IP65 rating ensures durability against environmental elements, making it suitable for a wide range of operational climates.

For operational convenience, the inverter is equipped with an intuitive LED display and an accompanying app for both iOS and Android devices, allowing for real-time monitoring and adjustments. Connectivity options are extensive, including RS485, USB, and Ethernet, with optional WiFi/GPRS for remote access.

With a commitment to reliability, the Dura-i Inverter is backed by a standard 5-year warranty, extendable up to 10 years. This commitment to quality is upheld by Duracell Energy’s rigorous standards and Puredrive Energy Limited’s dedicated support, ensuring that the Dura-i Inverter not only meets but exceeds the expectations of modern energy solutions.

Dura-i Inverter by Duracell Energy: Key Facts

1. Models Available:
• PD-DH1P-3.6K-G1
• PD-DH1P-4.6K-G1
• PD-DH1P-6K-G1
2. Efficiency:
• Maximum Efficiency (PV to AC): 97.3%
• European Efficiency (PV to AC): 96.8%
• Maximum Efficiency (BAT to AC): 94.3%
3. Input Specifications (PV):
• Maximum PV Power: 9,000W
• Maximum PV Voltage: 550V
• Maximum Input Current: 15A per input
• Number of MPPT: 2
4. Input Specifications (Battery):
• Compatible Battery Type: Lithium-ion
• Nominal Battery Voltage: 48V
• Maximum Charge/Discharge Power: Up to 6,000W
5. Output Specifications (Grid):
• Nominal AC Output Power: Up to 6,000W
• AC Voltage Range: 150-300V (adjustable)
• Grid Connection: Single phase
6. Output Specifications (Backup):
• Nominal Output Voltage: 230V
• Nominal Output Frequency: 50/60Hz
• Nominal Output Power: Up to 6,000W
• Transfer Time: 10ms (typical), 20ms (maximum)
7. Protection Features:
• Anti-islanding Protection
• DC/AC Overvoltage Protection
• AC Short Circuit Protection
• DC Reverse Protection
• Surge Arresters: DC Type III, AC Type III
8. General Specifications:
• Maximum Operation Altitude: 4,000m
• Ingress Protection Degree: IP65
• Operating Temperature Range: -25°C to 60°C
• Noise Emission: <35 dB
• Cooling Concept: Natural Cooling
9. Connectivity:
• Display: LED + App
• Communication Interfaces: RS485, USB, Ethernet, WiFi/GPRS (optional)
• Monitoring: App available for iOS and Android
10. Certification:
• Grid Safety: IEC62109-1/-2, EN/IEC 61000-6-1/-2/-3/-4, G98/G99
• EMC: IEC61000-6-2/3
11. Warranty:
• Standard Warranty: 5 years
• Optional Extended Warranty: 10 years

The Dura-i Inverter combines cutting-edge technology with robust protection and flexible integration options, making it an ideal choice for efficient energy conversion and management.
