If you’re considering installing a solar panel system for your home, you may be wondering whether it’s possible to use a 24 V solar panel to charge a 12 V battery. The short answer is yes, it’s possible. However, there are some important things you need to consider before doing so.

Firstly, it’s important to understand the basic concept of voltage. Voltage is the measure of the electrical potential difference between two points in an electrical circuit. In simple terms, it’s the force that drives electrons through a circuit. In a solar panel system, the voltage of the solar panel must be higher than the voltage of the battery it’s charging in order for the charging process to occur.

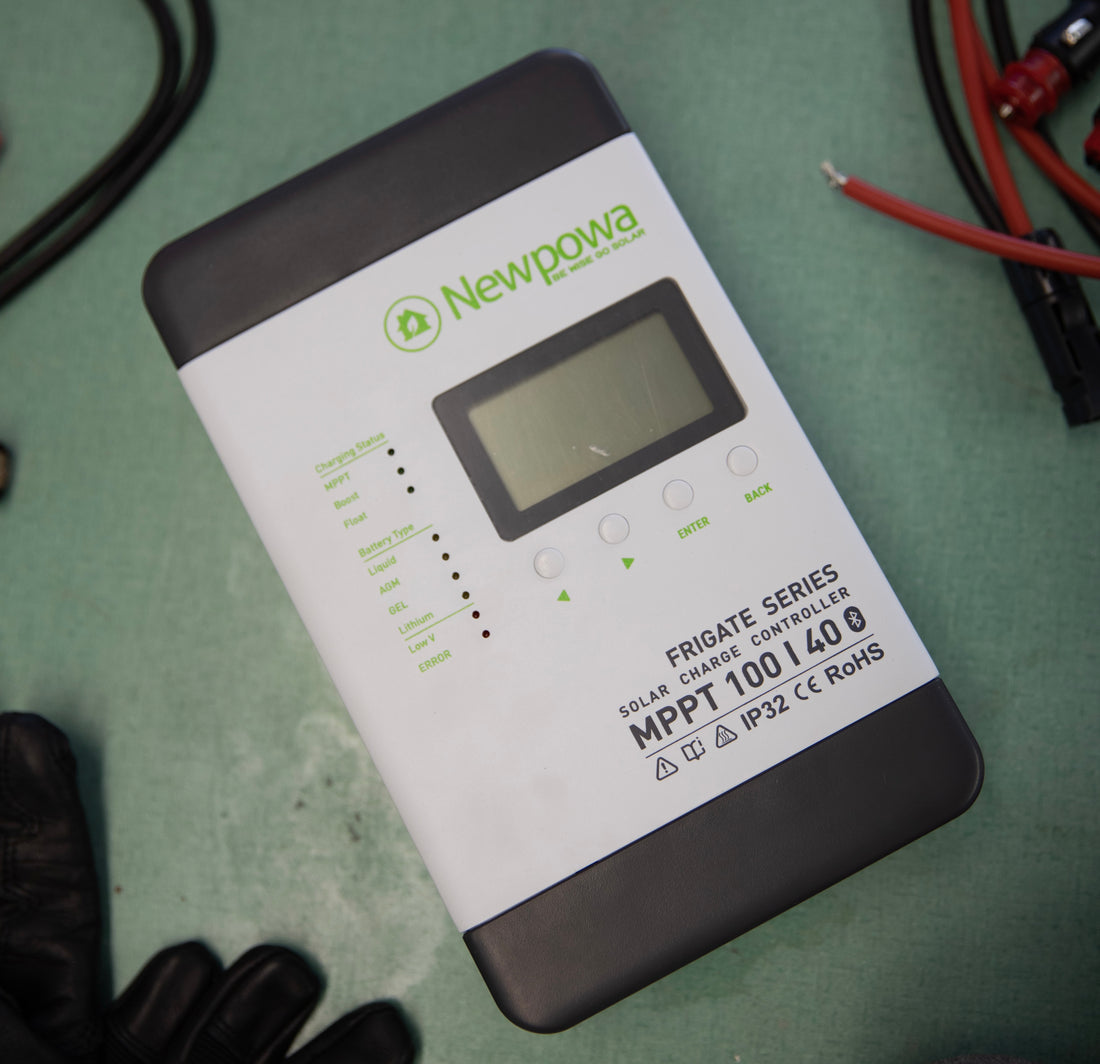

So, if you have a 24 V solar panel and a 12 V battery, you’ll need a device called a charge controller to regulate the charging process. The charge controller is connected between the solar panel and the battery, and it ensures that the voltage of the solar panel is reduced to the appropriate level for charging the battery.

When selecting a charge controller, it’s important to choose one that is compatible with both the solar panel and the battery you’re using. A good charge controller will not only regulate the voltage, but it will also prevent overcharging and undercharging, which can damage the battery and reduce its lifespan.

Another important factor to consider is the size of the solar panel. The size of the solar panel required to charge a 12 V battery will depend on the capacity of the battery and the amount of sunlight available. As a general rule, you’ll need a solar panel that is capable of producing at least 10% of the battery’s capacity in amps per hour.

For example, if you have a 100 Ah battery, you’ll need a solar panel that can produce at least 10 amps per hour. This means that a 200 W solar panel, which typically produces around 10-12 amps per hour, would be sufficient.

In conclusion, it is possible to use a 24 V solar panel to charge a 12 V battery, but you’ll need to use a charge controller to regulate the charging process. When selecting a charge controller, it’s important to choose one that is compatible with both the solar panel and the battery. You’ll also need to ensure that the solar panel is the appropriate size for the battery’s capacity and the amount of sunlight available. By taking these factors into consideration, you can safely and effectively use a 24 V solar panel to charge a 12 V battery.
